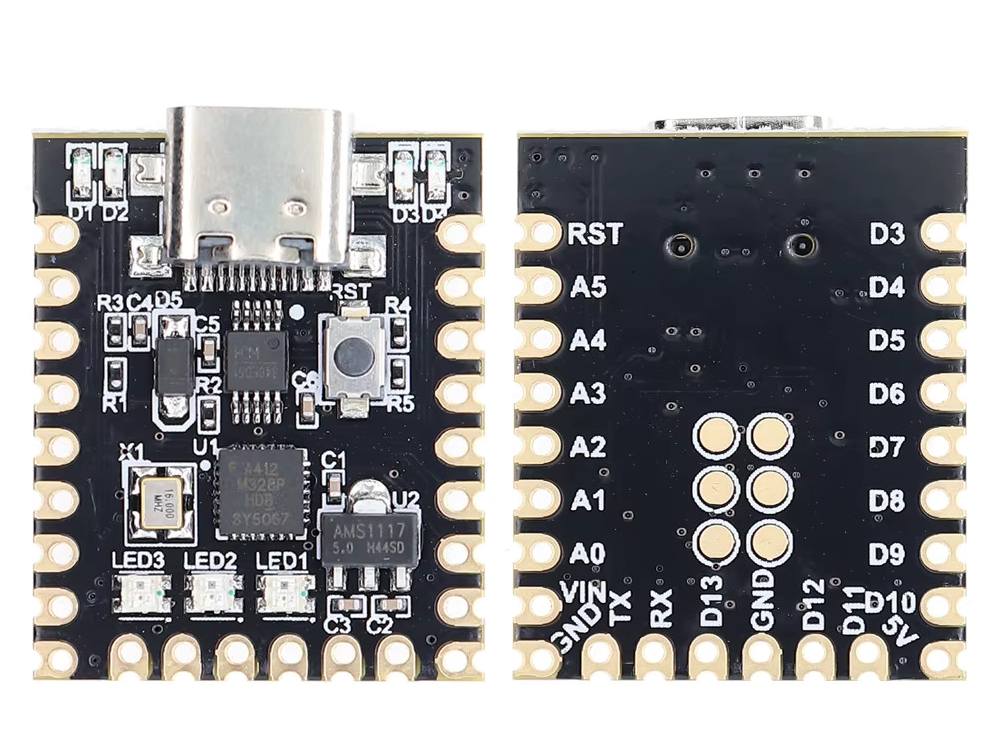

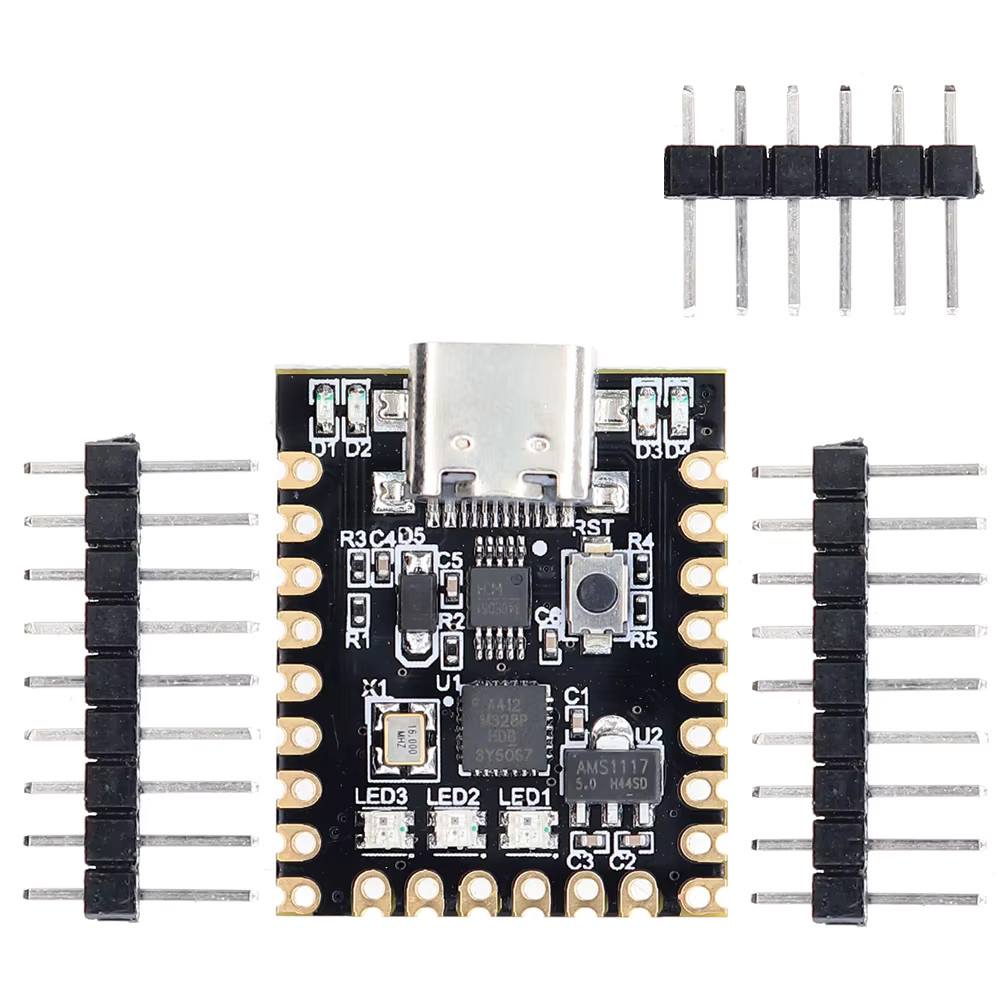

Arduino Nano Mini Ultra Small Type-C Development Board Atmega328p Ch340

Описание

Arduino Nano Mini Ultra Small Type-C Development Board Atmega328p Ch340

Ардуино NANO в новом, более мелком, формате

При прошивке выбираем Arduino NANO (old bootloader)

Main control chip: ATMEGA328P
USB chip: CH340G
Input voltage: USB 5V/DC6-12V
Output voltage: 3.3V-5V
5V Max supply current: 1A
CPU frequency: 16MHz

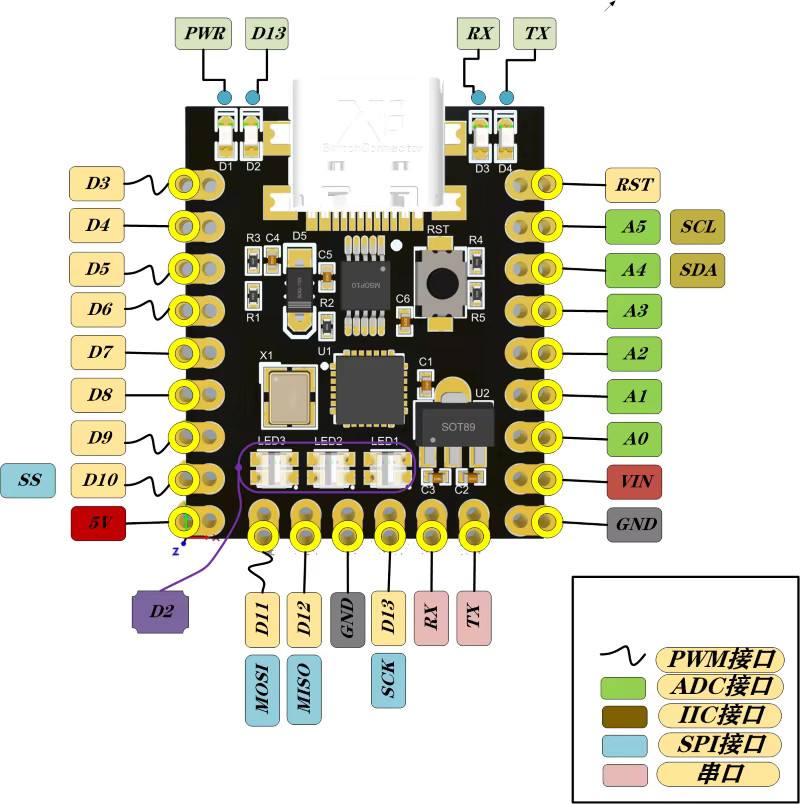

Analog port: 6(A0-A5)
Digital port (IO-PWM) : 14 (3/5/6/9/11 Support PWM
